P2-32S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 2㎜

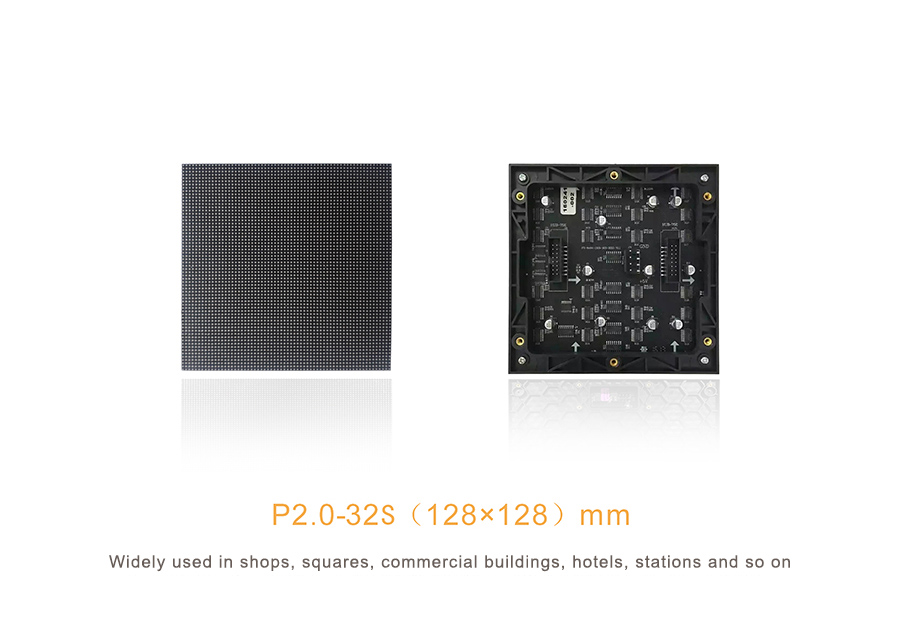

PANELS SIZE 128X128mm

CABINET SIZE 512x512(mm)

DENSITY 250000 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 64*64=4096 DOTS

PANELS WEIGHT 0.14 kg

CABINET RESOLUTION 256x256mm

CABINET AREA 0.262144m²

CABINET WEIGHT 7.18KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 2m～27m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥120°OPTION

AVERAGE POWER CONSUMPTION         ＜500W/㎡

MAXIMUM POWER CONSUMPTION       ＜1000w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/32S

MAXIMUM POWER≤20W

REPETITION FREQUENCY≧1920Hz

WHITE BALANCE BRIGHTNESS         ≧1000cd/㎡

REFRESH RATE≥500Hz

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH2-32S

3 IN 1

LEDS 1515
