PIXEL PITCH 5㎜

PANELS SIZE 320x160㎜

CABINET SIZE 960x960(mm)

DENSITY 40000 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 32*64=2048 DOTS

PANELS WEIGHT 0.43 kg

CABINET RESOLUTION 192*192

CABINET AREA 0.9216m²

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 5m～50m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥160°OPTION

AVERAGE POWER CONSUMPTION         ＜700W/㎡

MAXIMUM POWER CONSUMPTION       ＜1400w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/8S

REPETITION FREQUENCY ≧60Hz

REFRESH RATE≧300Hz

WHITE BALANCE BRIGHTNESS         ≧5000cd/㎡

WORKING VOLTAGE(AC)

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

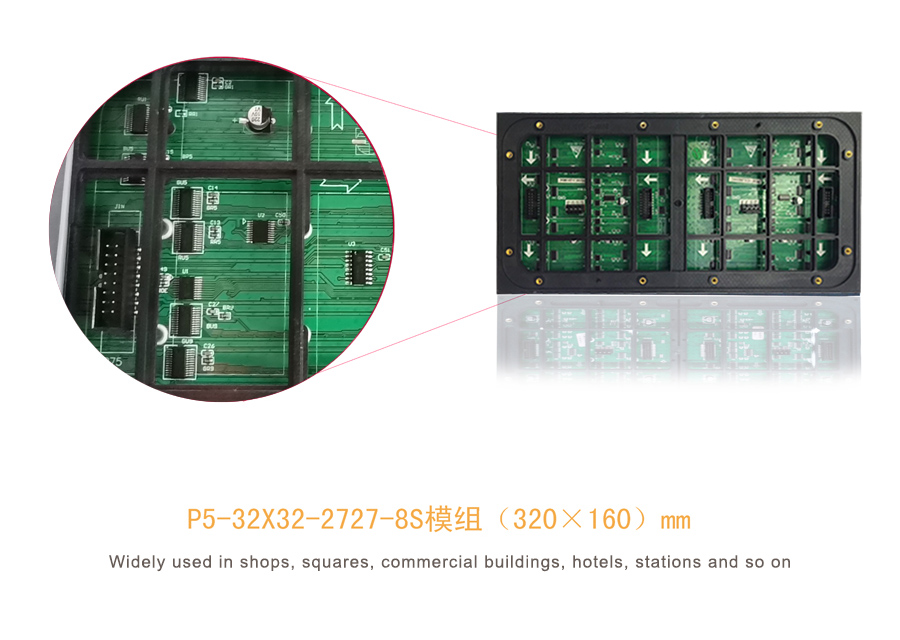

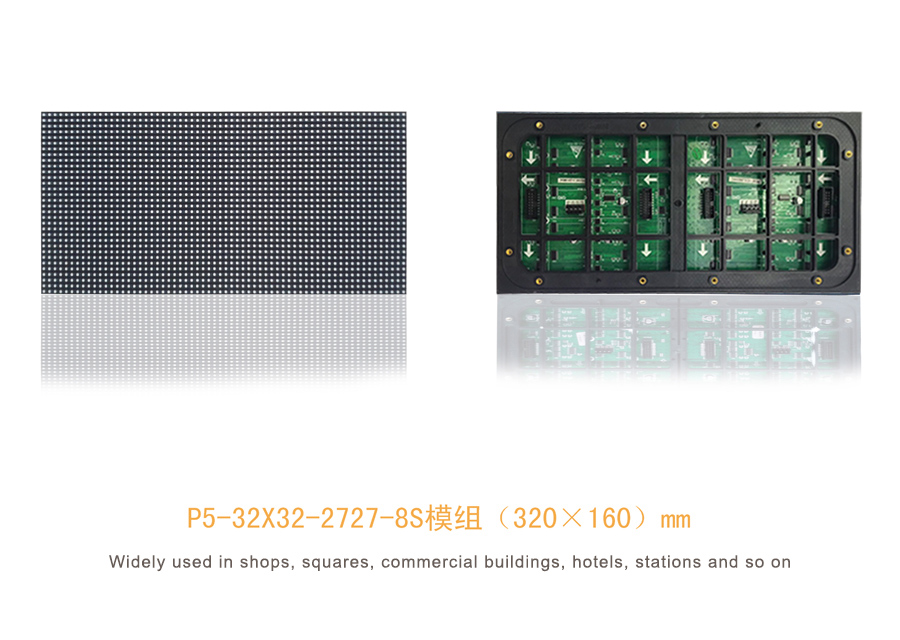

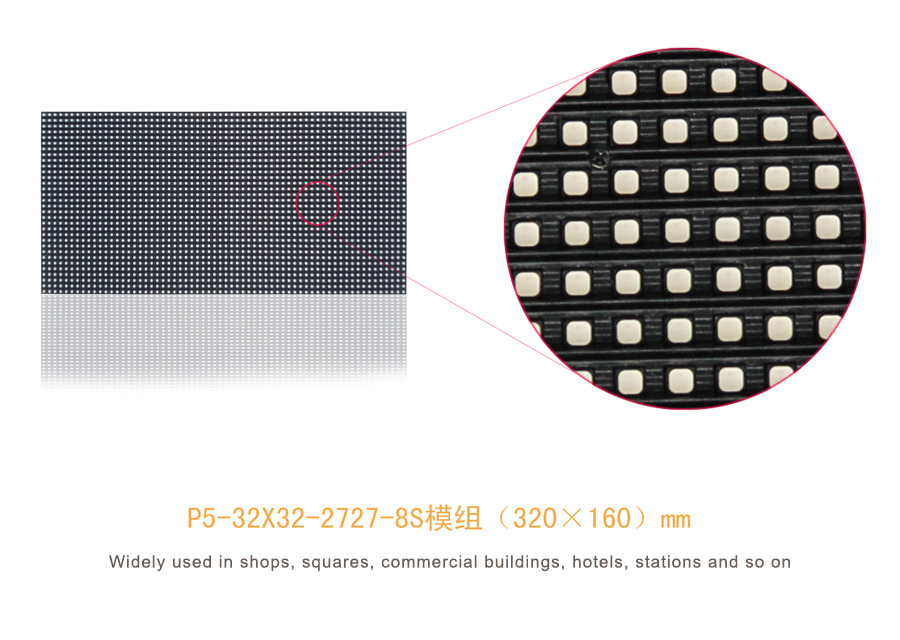

ITEM PH5-8S

3 IN 1

LEDS 2727
