P2.5-32S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 2.5㎜

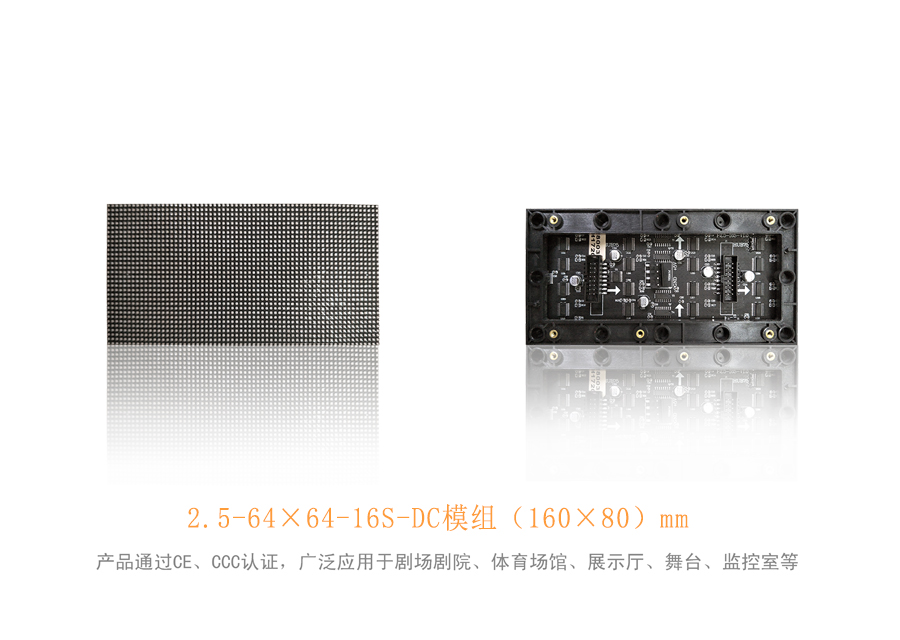

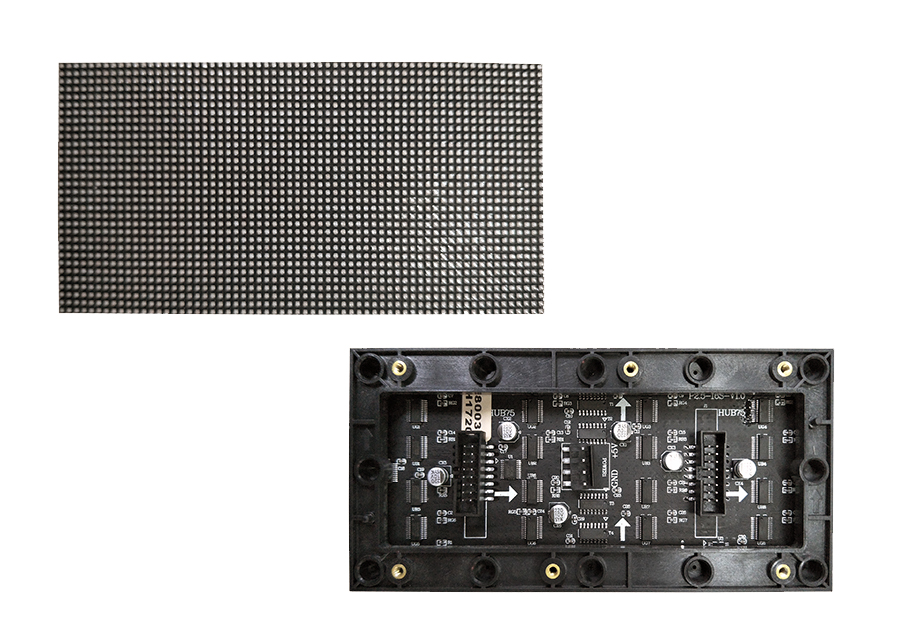

PANELS SIZE 160x80mm

CABINET SIZE 640x640(mm)

DENSITY 160000 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 64*64=4096 DOTS

PANELS WEIGHT 0.24 kg

CABINET RESOLUTION 256x256mm

CABINET AREA 0.4096m²

CABINET WEIGHT 10.78KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 2m～30m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥160°OPTION

AVERAGE POWER CONSUMPTION         ＜1000W/㎡

MAXIMUM POWER CONSUMPTION       ＜2000w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/16S

MAXIMUM POWER≤18W

REPETITION FREQUENCY≧50/60

WHITE BALANCE BRIGHTNESS         ≧1000cd/㎡

REFRESH RATE≥2880Hz

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH2.5-16S

3 IN 1

LEDS 2121
