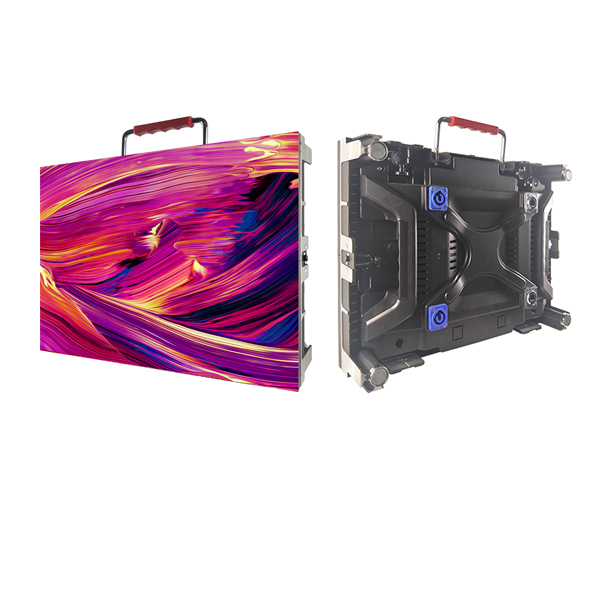

P1.667-30S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 1.667㎜

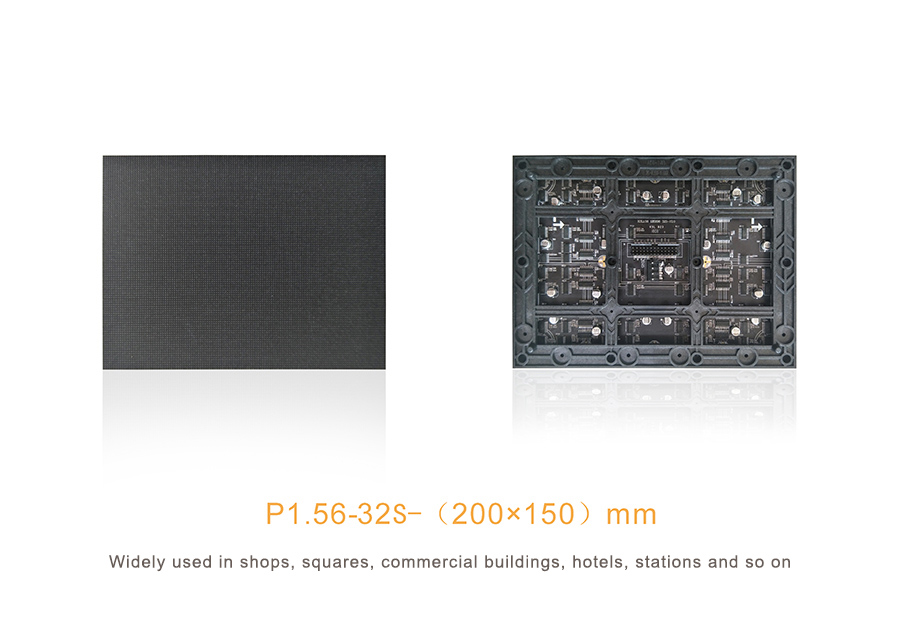

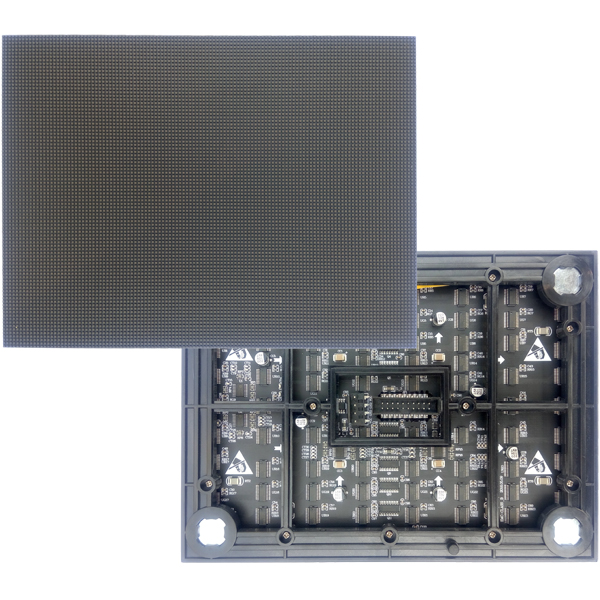

PANELS SIZE 200x150mm

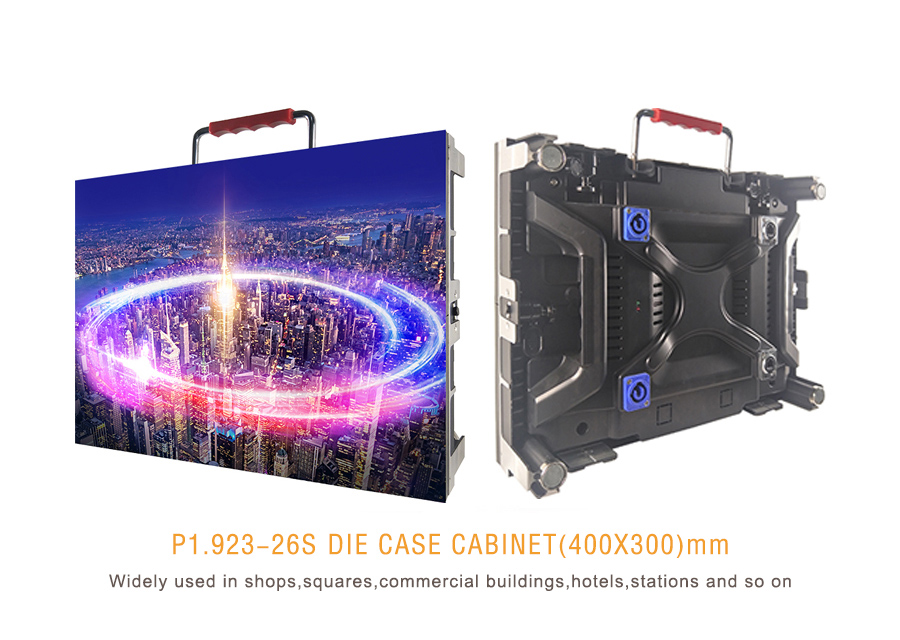

CABINET SIZE 400x300x78(mm)

DENSITY 360000 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 120*90=10800 DOTS

PANELS WEIGHT 0.27 kg

CABINET RESOLUTION 240x180

CABINET AREA 0.12m²

CABINET WEIGHT 5.2KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 1m～25m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥140°OPTION

AVERAGE POWER CONSUMPTION         ＜500W/㎡

MAXIMUM POWER CONSUMPTION       ＜1200w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/30S

MAXIMUM POWER≤30W

REPETITION FREQUENCY≧50/60

WHITE BALANCE BRIGHTNESS         ≧1000cd/㎡

REFRESH RATE≥3840Hz

BRIGHTNESS CONTROL MODE

IC:ICN2053/MBI5153

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH1.667-30S

3 IN 1

LEDS1010
