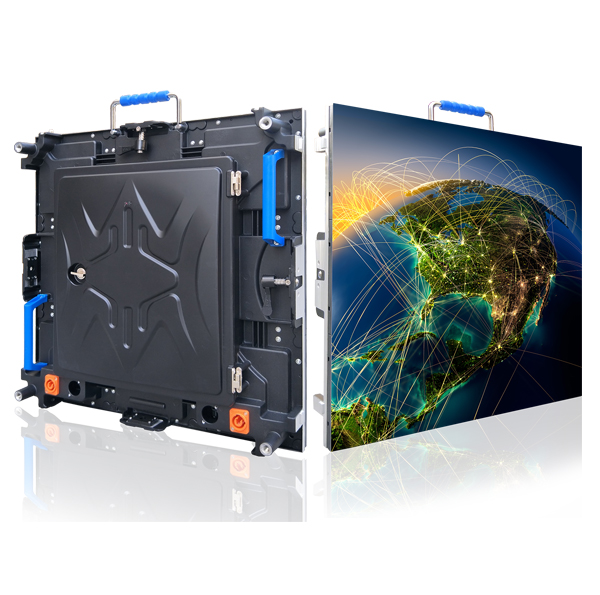

P1.875-32S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 1.875㎜

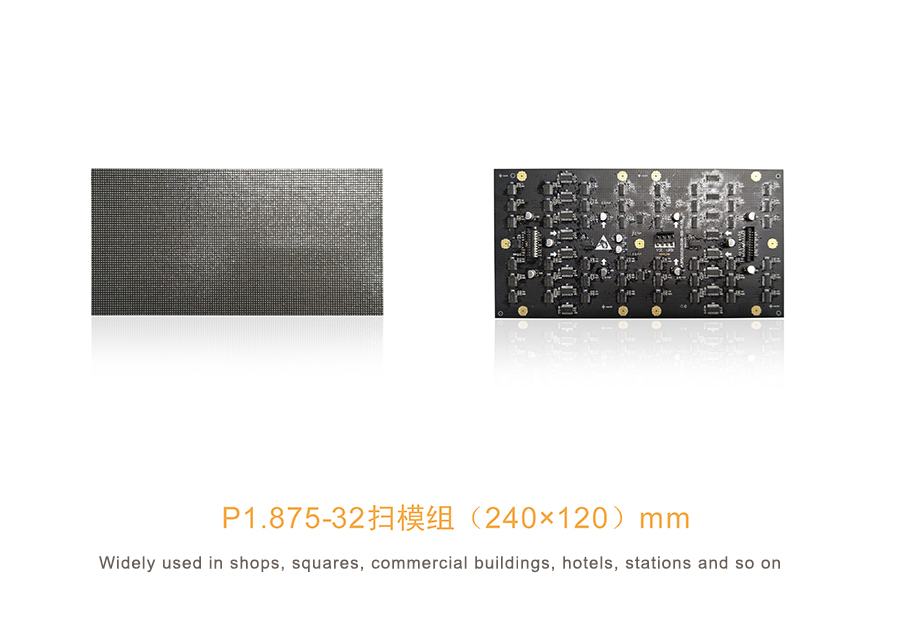

PANELS SIZE 240x120mm

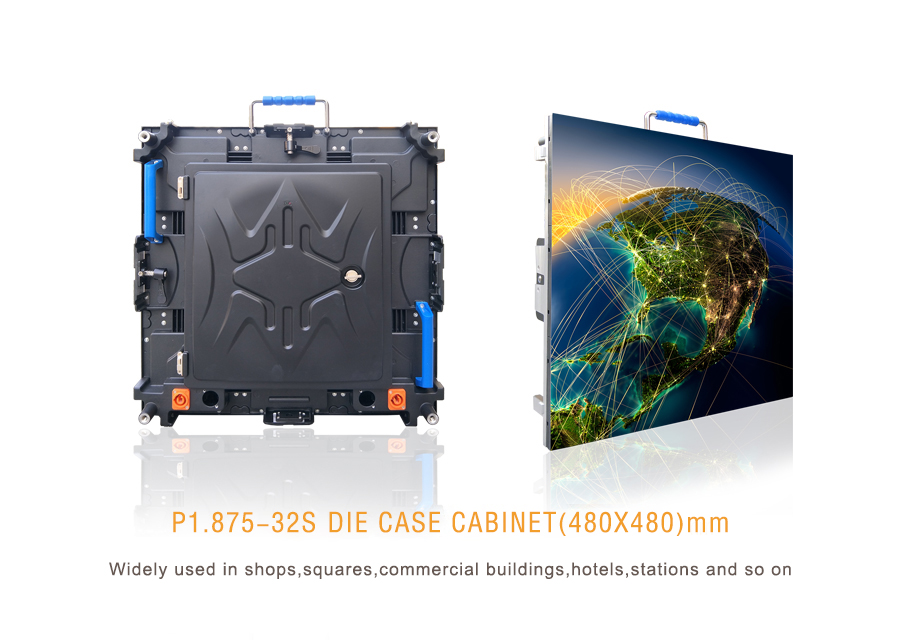

CABINET SIZE 480x480x75(mm)

DENSITY 284444 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 128*64=8192 DOTS

PANELS WEIGHT - kg

CABINET RESOLUTION 256*256

CABINET AREA 0.2304m²

CABINET WEIGHT 6.7KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 1m～28m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥140°OPTION

AVERAGE POWER CONSUMPTION         ＜400W/㎡

MAXIMUM POWER CONSUMPTION       ＜800w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/32S

REPETITION FREQUENCY≥60Hz

REFRESH RATE≧3840Hz

WHITE BALANCE BRIGHTNESS         ≧1000cd/㎡

REPETITION FREQUENCY≥50/60

BRIGHTNESS CONTROL MODE

IC:ICN2053/MBI5153

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH1.875-32S

3 IN 1

LEDS1515
