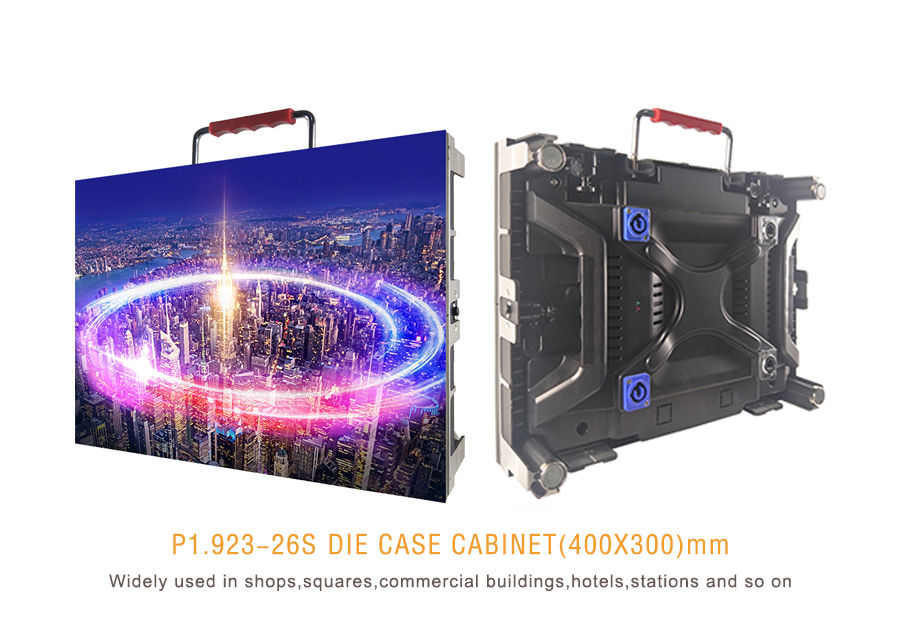

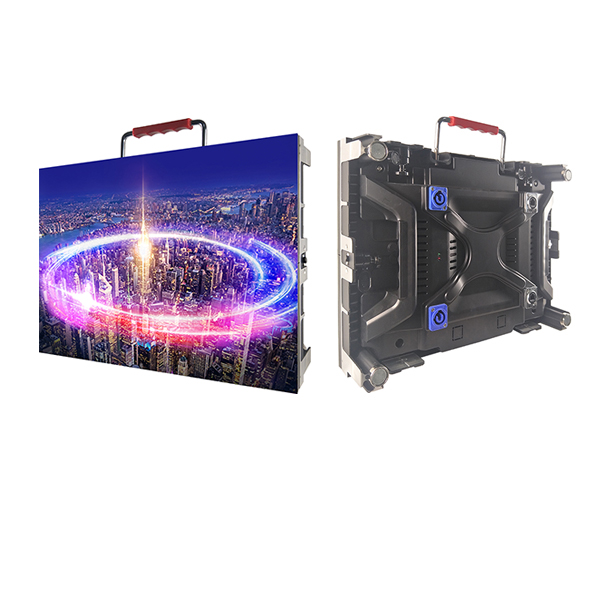

P1.923-26S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 1.923㎜

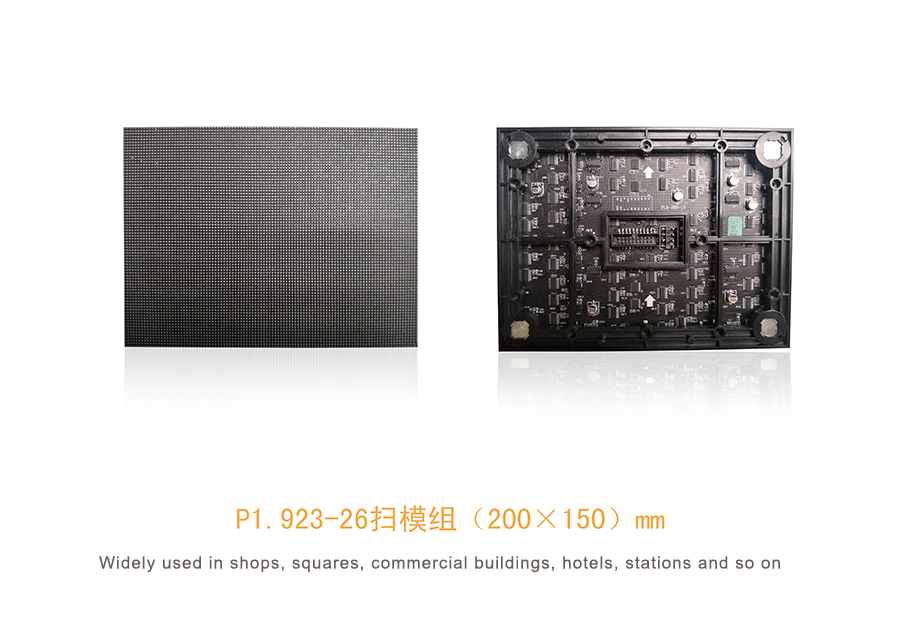

PANELS SIZE 200x150mm

CABINET SIZE 400x300x78(mm)

DENSITY 270422 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 104*78=8112 DOTS

PANELS WEIGHT - kg

CABINET RESOLUTION 208*156

CABINET AREA 0.12m²

CABINET WEIGHT 4.6KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 1m～27m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥160°OPTION

AVERAGE POWER CONSUMPTION         ＜400W/㎡

MAXIMUM POWER CONSUMPTION       ＜800w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/26S

MAXIMUM POWER≤30W

REPETITION FREQUENCY≥1920Hz

WHITE BALANCE BRIGHTNESS         ≧800cd/㎡

REFRESH RATE≧500Hz

BRIGHTNESS CONTROL MODE

BEIGHTNESS ADJUSTABLE

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH1.923-26S

3 IN 1

LEDS1010
