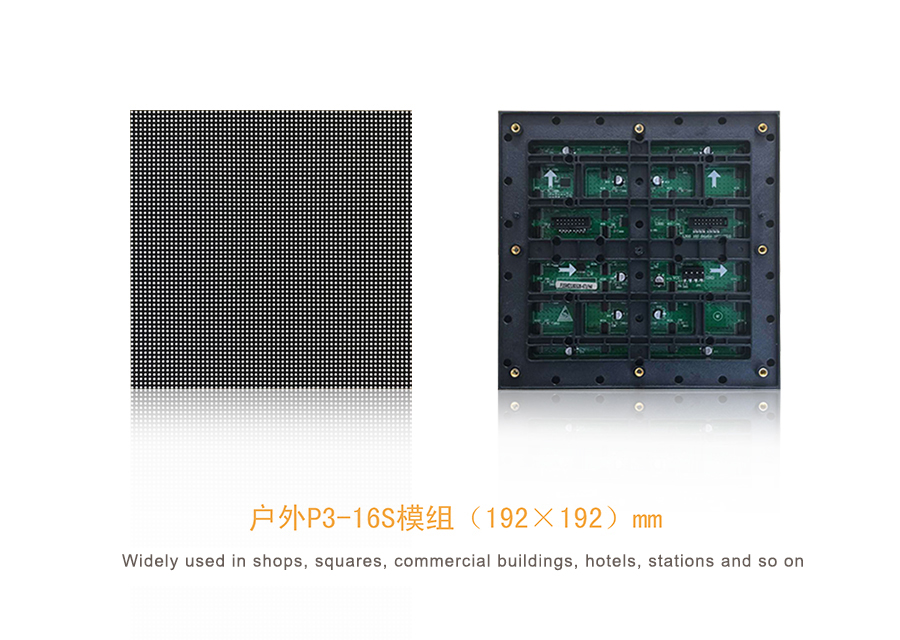

PANEL MAIN TECHNICAL PARAMETERS

PIXEL PITCH 3㎜

DENSITY 111111 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS SIZE 192x192㎜

PANELS RESOLUTION                64X64=4096 DOTS

PANELS WEIGHT 0.37KG

IC:FM6126/MBI5124

SCAN MODE: 1/16S

PANELS CONSUMPTION ＜25W

CABINET MAIN TECHNICAL PARAMETERS

CABINET RESOLUTION 192*192

CABINET AREA 0.332m²

CABINET SIZE 576X576mm

CABINET WEIGHT 10.5KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 3m～60m

VISUAL ANGEL HORIZONTAL≧140°OPTION

VERTICAL≥120°OPTION

AVERAGE POWER CONSUMPTION         ＜350W/㎡

MAXIMUM POWER CONSUMPTION       ＜800w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/16 S

REPETITION FREQUENCY 50/60 Hz

REFRESH RATE 1000~1920Hz

WHITE BALANCE BRIGHTNESS         ≧4000cd/㎡

WORKING VOLTAGE(AC)

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH3-16S

3 IN 1

LEDS 1919
