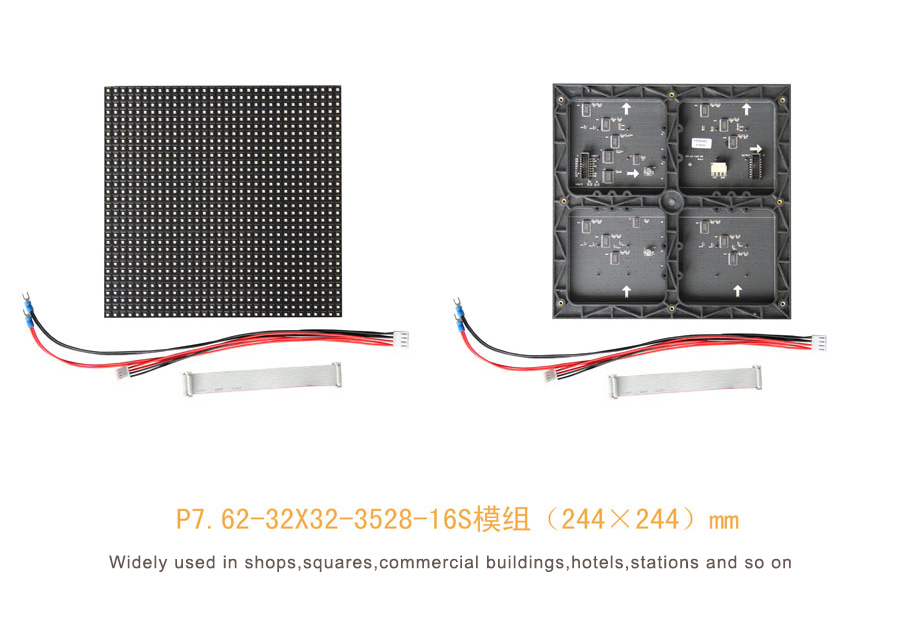

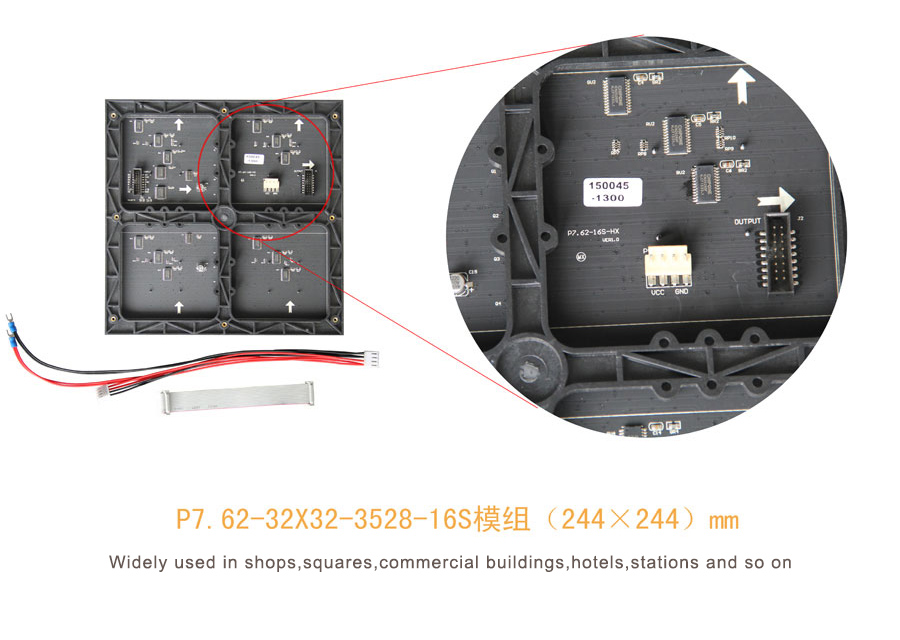

P7.62-16S INDOOR LED DISPLAY MAIN SPECIFICATION

PIXEL PITCH 7.62㎜

PANELS SIZE 244x244mm

CABINET SIZE 732x732x93(mm)

DENSITY 17161 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 32*32=1024 DOTS

PANELS WEIGHT 0.45 kg

CABINET RESOLUTION 96x96mm

CABINET AREA 0.535824m²

CABINET WEIGHT 11.59KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 6m～30m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥160°OPTION

AVERAGE POWER CONSUMPTION         ＜300W/㎡

MAXIMUM POWER CONSUMPTION       ＜600w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/16S

OPERATING VOLTAGE(AC)

REPETITION FREQUENCY≧60Hz

WHITE BALANCE BRIGHTNESS         ≧900cd/㎡

REFRESH RATE≥400Hz

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

ITEM PH7.62-16S

3 IN 1

LEDS 3528
