P4 INDOOR PANEL

Publish time 2019-10-09 13:36

Product information

Specification

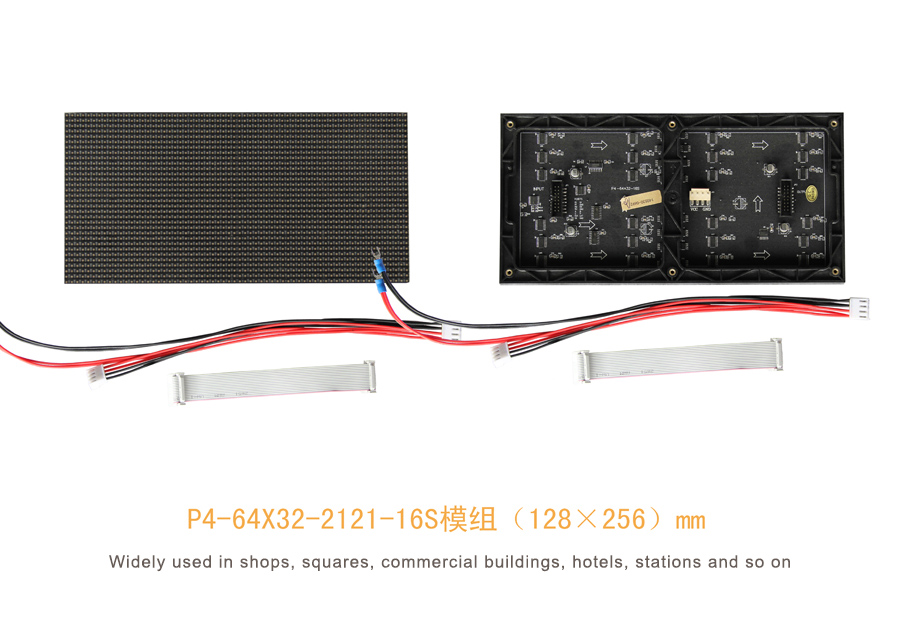

P4-16S INDOOR LED DISPLAY MAIN SPECIFICATION
PIXEL PITCH 4㎜	PANELS SIZE 256x128mm	CABINET SIZE 512x512(mm)
DENSITY 62500 dot/㎡	PIXEL CONSTITATION 1R1G1B	PANELS PIXEL 32*64=2048 DOTS
PANELS WEIGHT 0.23 kg
CABINET RESOLUTION 128x128mm	CABINET AREA 0.262144m²	CABINET WEIGHT 8.39KG±0.05KG
MAIN TECHNICAL PARAMETERS
OPTIMUM VIEWING DISTANCE 4m～41m	VISUAL ANGEL HORIZONTAL≧160°OPTION	VERTICAL≥160°OPTION
AVERAGE POWER CONSUMPTION ＜500W/㎡	MAXIMUM POWER CONSUMPTION ＜1000w/㎡	CONTROL MODE:SYNCHRONOUS
DISPLAY CARD: DVI CARD	SCAN MODE: 1/16S	MAXIMUM POWER≤20W
REPETITION FREQUENCY≧360Hz	WHITE BALANCE BRIGHTNESS ≧1000cd/㎡	REFRESH RATE≥500Hz
BRIGHTNESS CONTROL MODE	AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT	ADJUSTABLE LEVEL 16
SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100
COMPUTER OPERATING SYSTEM
WIN98、WINXP、WIN2000,etc
THE VIDEO SIGNAL
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC
CONTROL SYSTEM
PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）
MEAN FREE ERROR TIME ≧5000H	LIFETIME 75000～100000H	OUT OF CONTROL RATE ＜0.0002 PCS
ITEM PH4-16S	3 IN 1	LEDS 2121

Reminder:Because the mold is constantly updated.All photos here are for reference only,specifications are subject to the physical product.
