PIXEL PITCH 5㎜

PANELS SIZE 320x160mm

CABINET SIZE 640x640(mm)

DENSITY 40000 dot/㎡

PIXEL CONSTITATION 1R1G1B

PANELS PIXEL 32*64=2048 DOTS

PANELS WEIGHT 0.4 kg

CABINET RESOLUTION 128x128mm

CABINET AREA 0.4096m²

CABINET WEIGHT 9.35KG±0.05KG

MAIN TECHNICAL PARAMETERS

OPTIMUM VIEWING DISTANCE 5m～45m

VISUAL ANGEL HORIZONTAL≧160°OPTION

VERTICAL≥120°OPTION

AVERAGE POWER CONSUMPTION         ＜350W/㎡

MAXIMUM POWER CONSUMPTION       ＜800w/㎡

CONTROL MODE:SYNCHRONOUS

DISPLAY CARD: DVI CARD

SCAN MODE: 1/16S

MAXIMUM POWER≤12W

REPETITION FREQUENCY≧360Hz

WHITE BALANCE BRIGHTNESS

≧1600cd/㎡

REFRESH RATE≥500Hz

BRIGHTNESS CONTROL MODE

AUTOMATIC BRIGHTNESS SENSING ADJUSTMENT

ADJUSTABLE LEVEL 16

SOFTWARE MANUAL ADJUSTMENT:100 LEVEL ADJUSTABLE 100

COMPUTER OPERATING SYSTEM

WIN98、WINXP、WIN2000,etc

THE VIDEO SIGNAL

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION ETC

CONTROL SYSTEM

PCTV CARD（optional）+DVI CARD+MASTER CARD+OPTICAL FIBER TRANSMISSION（optional）

MEAN FREE ERROR TIME ≧5000H

LIFETIME 75000～100000H

OUT OF CONTROL RATE  ＜0.0002 PCS

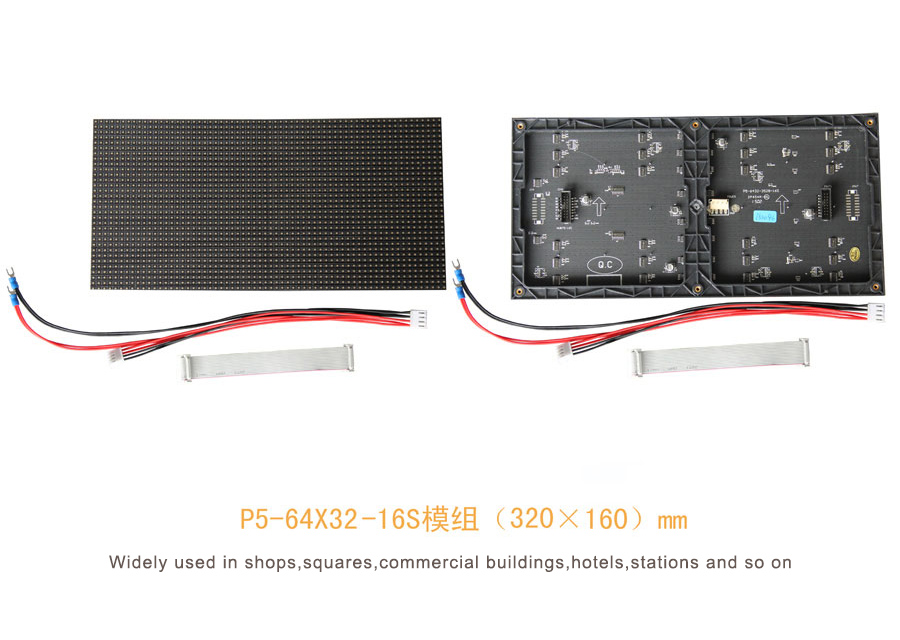

ITEM PH5-16S

3 IN 1

LEDS 2121
